What is the height of the high pole lamp?
The height of the lamp plate of the high pole lamp basically has a certain size standard, then we will understand the height of the lamp plate of this equipment.
20 meters high
The height of the lamp plate is basically composed of a number of different steel structure of the lamp frame, all metal frame or outdoor exposed parts and the surface of the lamp plate are anodized, this lamp also has anti-corrosion measures, the uniformity of high pressure sodium translucent lamp, and even the top of the entire lamp board has a separate lightning rod. The light panel itself is single-sided and can illuminate the parking lot square.
15 meters high
The height of the high-pole lamp is basically 15 meters, the lamp tray uses a variety of steel structure light frame, all the contact frame part or outdoor exposed lamp tray have anodic oxidation film, the high-pole whole lamp has the characteristics of high-pressure sodium lamp, can be used in a variety of arrangements, and the bottom of the entire lamp tray is also safely equipped with an independent lightning rod, the shape is single-sided, can be like a toll station light.
Whether the total height of the high pole light is 15 meters or 20 meters, only floodlights can be selected in the actual irradiation process, it is recommended to choose. The power of the lamp is 100 watts, and the light source is also an LED lamp. In the irradiation process, this kind of high-pole lamp irradiation can basically meet the existing irradiation needs, and can be processed by power chip packaging technology.
The Hi-flood fixture is a versatile, high-performance sports flood light designed for recreational and collegiate outdoor fields. It can also be used as a high-bay fixture for high-ceiling applications such as airplane hangers and large warehouses and distribution centers.
Hi-Flood Sports Floodlight Series Information
Part Number | HS-HM200W-E | HS-HM400W-E | HS-HM600W-E | HS-HM800W-E | HS-HM1000W-E | HS-HM1200W-E | HS-HM1400W-E | HS-HM1600W-E | HS-HM1800W-E |
Wattage | 200W | 400W | 600W | 800W | 1000W | 1200W | 1400W | 1600W | 1800W |
Lumen Output | 29600lm | 60000lm | 90000lm | 120000lm | 150000lm | 180000lm | 210000lm | 240000lm | 270000lm |
LED Quantity | 64pcs | 128pcs | 192pcs | 256pcs | 320pcs | 384pcs | 448pcs | 512pcs | 596pcs |
LED Chip | 5050 chip | ||||||||
Luminous Efficacy | 150LPW | ||||||||
CCT | 3000K-6500K | ||||||||
CRI | ≥80 | ||||||||
Beam Angle | 10°(only for 3737chip)/20°/40°/60° | ||||||||
IP Rating | IP65 | ||||||||
Working Temperature | -30℃ to +55℃ | ||||||||
Input Voltage | AC100-277V/347V/480V, 50/60Hz, >0.92 | ||||||||
Warranty | 5 years | ||||||||
Lifespan | >50,000hrs | ||||||||
Material | Die-casting Aluminum housing+PC lens |
Physical picture
Wattage | 200W | |

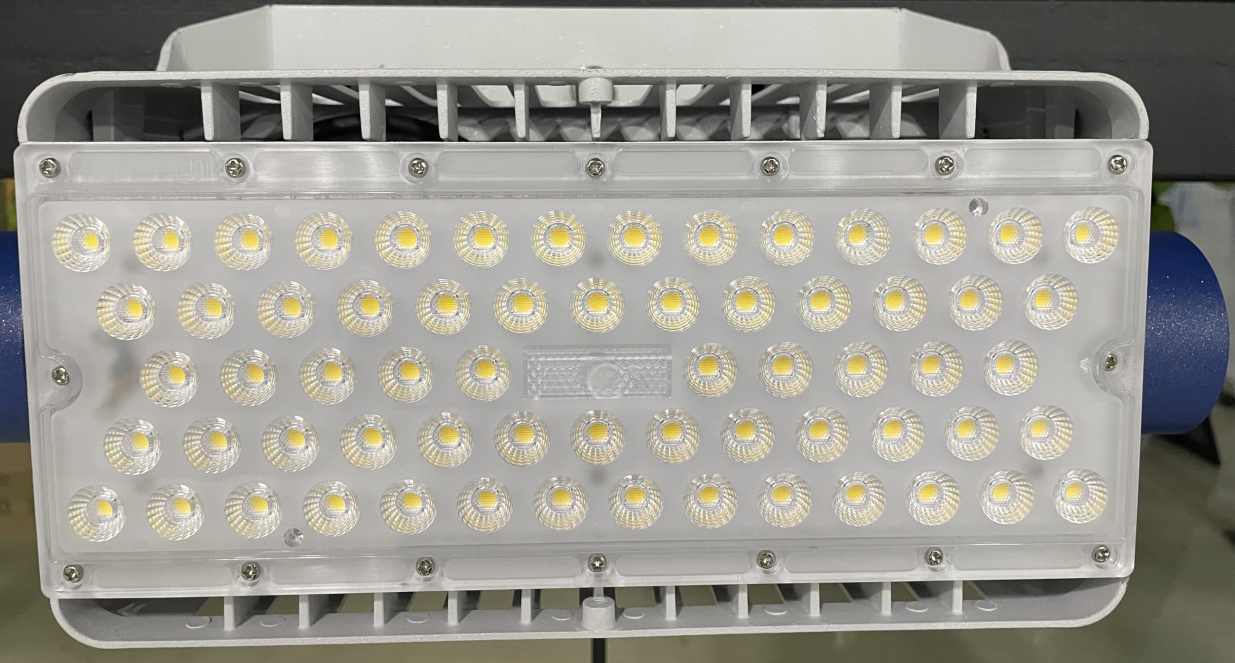

Front | ![]() |
|

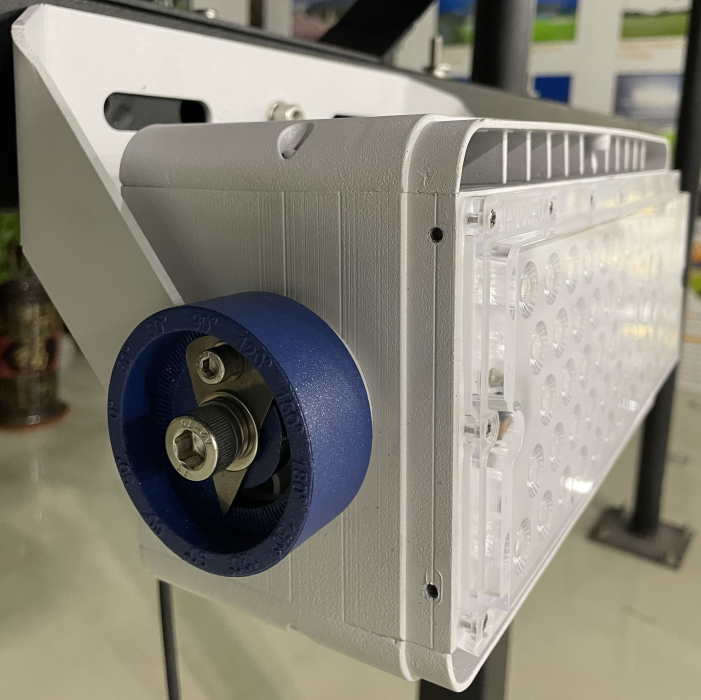

Side | ![]() |
|

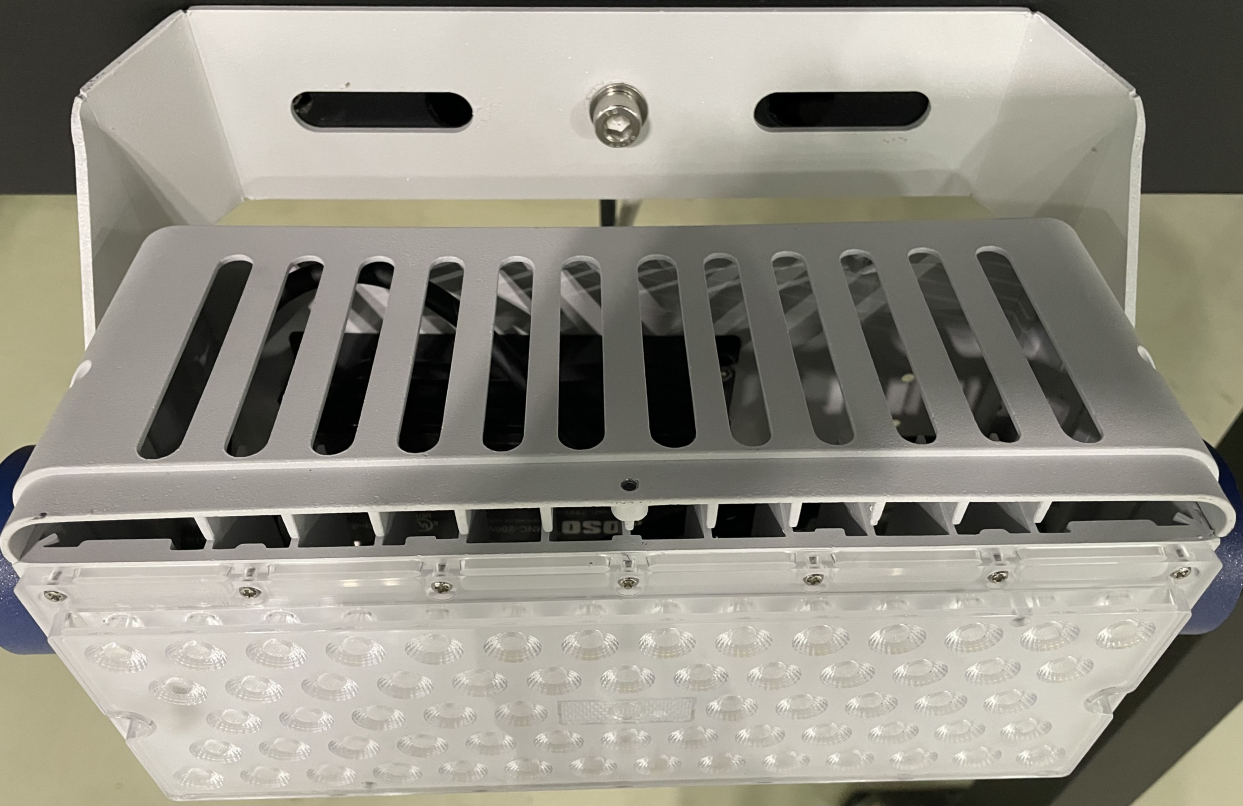

Overlooking | ![]() |
Product Features
1.Ruggedly designed with die-cast aluminum housing and clear polycarbonate lens, Mercury and UV free. RoHs-compliant components.
2.High luminous efficacy up to 150LM/W.
3.Chimney heat dissipation design improves cooling efficiency to facilitate maximum airflow.
4.Built-in Aimer makes installation more efficient and accurate. There is no need to purchase an additional laser aimer and it can be easily installed synchronously according to the DIALux file design.
5.Beam angle 10°(only for 3737chip)/20°/40°/60°, the narrow beam has strong penetrating power and can be used in railway tracks, towers, and other occasions that require strong light exposure.
6.The fixture is lightweight compared to most sports floods and has angle increments calibrated on the housing, standard yoke mount, and slip-fit mount for precise aiming.
Product Dimensions
Installation Methods
Application Of LED Soccer Sports Stadium Lights
![]() |
![]() |
![]() |
![]() |
Basketball Court Light | Tennis Court Light | Baseball Court Light | Hockey Stadium Lihgt |
![]() |
![]() |
![]() |
![]() |
Racecourse Light | Football Field Light | Golf Course Light | Badminton Court Light |
Olympic Stadium Lighting: Hi-Flood high mast light provides bright and even illumination for players and spectators. With DMX/DALI control high mast light can make complex light shows and scene modes.
Outdoor Sports Arenas Lighting: Up to 150lm/W provides powerful illumination that allows games to be played well into the night. Such as basketball fields, soccer fields, football stadiums, tennis courts, rugby fields, beach volleyball fields, baseball fields, hockey fields, racetracks, velodromes, golf courses, theme parks, and swimming pools…
Indoor Sports Arenas Lighting: Hi-Flood soccer sports stadium lights’ design allows the lamps to be evenly distributed across the playing surface.
Port Terminals Lighting: Super high mast light provides bright and efficient illumination that enhances safety and visibility.
Airport and Aprons Lighting: Hi-Flood high mast light’s powerful illumination and Typhoon 17 resistance allow workers to see, even in low-light conditions, reducing the risk of accidents and increasing productivity.
Squares and School Playgrounds Lighting: Hi-Flood soccer sports stadium lights powerful illumination allows children to play safely, even in low-light conditions, reducing the risk of accidents and increasing playtime.
Circular Roads and Bridges Lighting: Hi-Flood high mast light’s high brightness lighting chip and IP67 waterproof, make road driving safe and bright.
Prison Courtyards Lighting: Powerful illumination allows drivers and security personnel to see, even in low-light conditions, reducing the risk of accidents and enhancing security.
