The Best Solution of Football Field
Stadium lights are very strong sports field lights set at great heights with narrow beam angles, often between 12 and 60 degrees. With these narrower beam angles, the light intensity inside that angle is greater, allowing brilliant light to reach the ground from greater heights.
The lighting of football fields plays a vital role in night games. For the audience, their experience depends heavily on the lighting system settings. For players, the lights must provide enough coverage so that they can use their skills to the fullest.
Football field lighting is a design with strong functionality, high technology, and a relatively high degree of difficulty. Football stadium lights not only must they meet the standards of various levels of football events, but also pay great attention to the actual effect of the real-time color TV broadcast. In order to ensure that the broadcast images are vivid and clear, and the colors are true, there are corresponding regulations on the vertical illuminance, uniformity of light intensity, spatial three-dimensionality, color temperature, and color rendering index of the light source, and the lighting standards of different levels of football fields are different.
Lighting Standards ( Outdoor)
Some National Associations and governments have set different requirements for indoor or outdoor lighting and may use different units of measurement. However, as a guide, the following shows the minimum standards according to the European Standard for Sports Lighting, EN 12193:2008: –
Class I: Top-level national and international competitions (non-televised) with requirements for spectators with potentially long viewing distances.
Class II: Mid-level competition, such as regional or local club tournaments. This generally involves medium-sized numbers of spectators with average viewing distances. High-level training may also be included in this class.
Class III: Low-level competition, such as local or small club tournaments. This does not usually involve spectators. General training, school sports, and recreational activities also fall into this class.

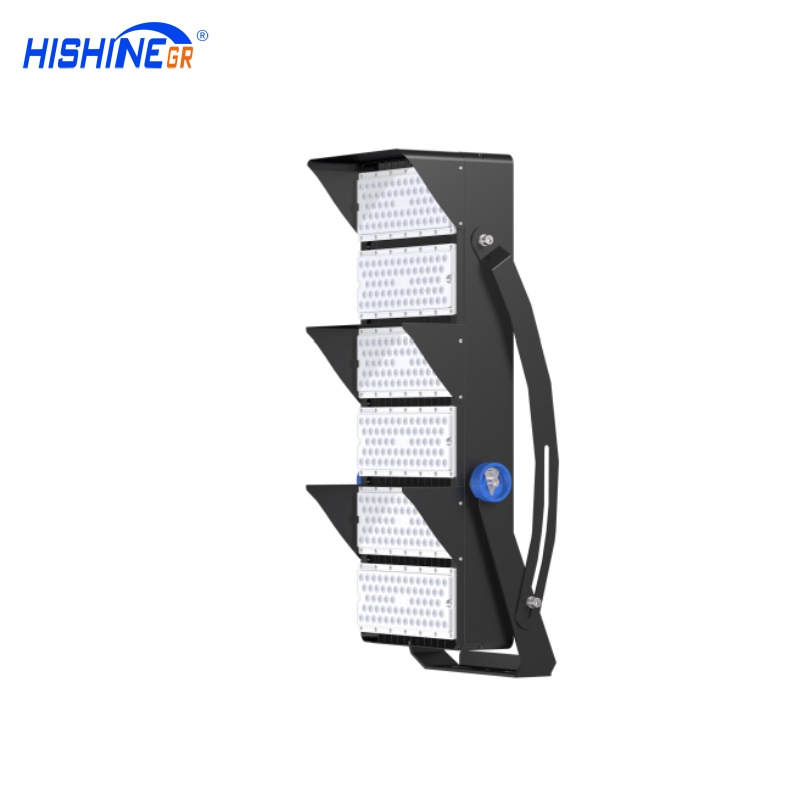

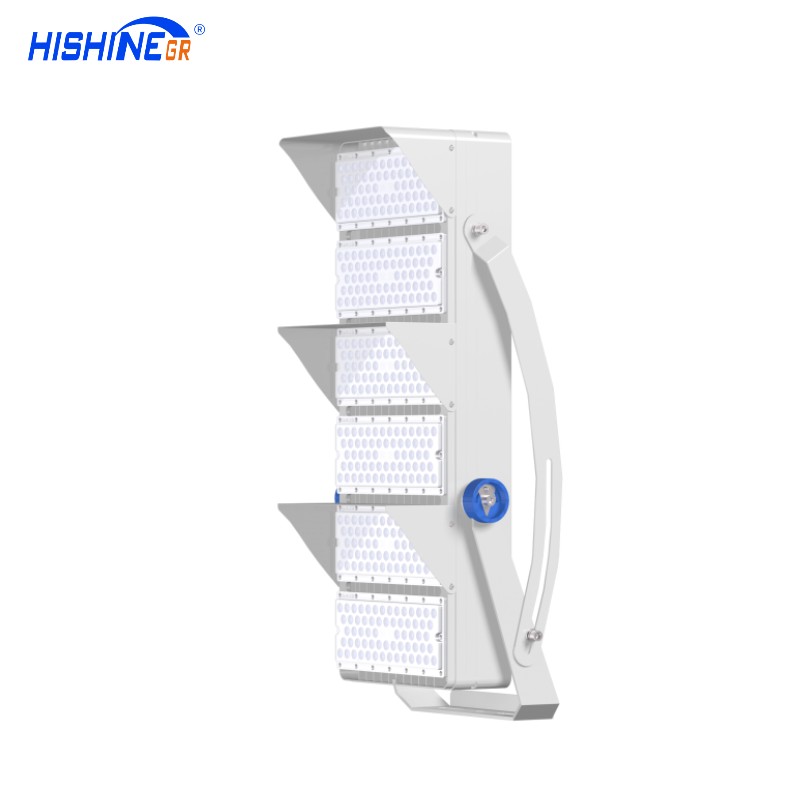

1200W Floodlight Product Parameters
| Input Power |
1200W |
| Lumen Output |
180,000lm |
| LED Chip |
Lumileds 5050 |
| Luminous Efficacy |
150LM/W |
| LED Quantity |
384 Pcs |
| CCT |
3000-6500K |
| Input Voltage |
AC100-277V/347V/480V |
| CRI |
>80 |
| PF |
>0.95 |
| Beam Angle |
10°/20°/40°/60° |
| IP Rating |
IP66 |
| Working Temperature |
-30°C to +55°C |
| Warranty |
5 Years |
| Lifespan |
>50,000 hrs |
| Material |
Die-Cast Aluminum |
| Certification |
UL,DLC |
Product Features
1. Ruggedly designed with die-cast aluminum housing and clear polycarbonate lens, Mercury and UV free. RoHs-compliant components.
2. High luminous efficacy up to 150LM/W.
3. Chimney heat dissipation design improves cooling efficiency to facilitate maximum airflow.
4. Built-in Aimer makes installation more efficient and accurate. There is no need to purchase an additional laser aimer and it can be easily installed synchronously according to the DIALux file design.
5. Beam angle 10°(only for 3737chip)/20°/40°/60°, the narrow beam has strong penetrating power and can be used in railway tracks, towers, and other occasions that require strong light exposure.
6. The fixture is lightweight compared to most sports floods and has angle increments calibrated on the housing, standard yoke mount, and slip-fit mount for precise aiming.
Product Details
 |
 |
|
Beam Angles: 10°/20°/40°/60°
|
SMD 5050 chips, Make Brighter
|
 |
 |
|
Each scale is 30°
|
Unique air convection radiator desig
|
Installation method
Applications
 |
 |
 |
 |
| Basketball Court Light |
Tennis Court Light |
Baseball Court Light |
Hockey Stadium Lihgt |
 |
 |
 |
 |
| Racecourse Light |
Football Field Light |
Golf Course Light |
Badminton Court Light |
Olympic Stadium Lighting: Hi-Flood high mast light provides bright and even illumination for players and spectators. With DMX/DALI control high mast light can make complex light shows and scene modes.
Outdoor Sports Arenas Lighting: Up to 150lm/W provides powerful illumination that allows games to be played well into the night. Such as basketball fields, soccer fields, football stadiums, tennis courts, rugby fields, beach volleyball fields, baseball fields, hockey fields, racetracks, velodromes, golf courses, theme parks, and swimming pools.
Port Terminals Lighting: Super high mast light provides bright and efficient illumination that enhances safety and visibility.
Airport and Aprons Lighting: Hi-Flood high mast light’s powerful illumination and Typhoon 17 resistance allow workers to see, even in low-light conditions, reducing the risk of accidents and increasing productivity.
Squares and School Playgrounds Lighting: Hi-Flood soccer sports stadium lights powerful illumination allows children to play safely, even in low-light conditions, reducing the risk of accidents and increasing playtime.
Prison Courtyards Lighting: Powerful illumination allows drivers and security personnel to see, even in low-light conditions, reducing the risk of accidents and enhancing security.
