Product

150W-250W H2 LED UFO High Bay Light in Railway station lighting

Product Parameters:

  • Wattage: 150W 200W 250W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 22800lm-38000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA

Product Details

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图

The UFO LED high bay fixture  from H2 is designed to replace a 6-lamp T5HO fluorescent fixture. This 250 watt LED high bay produces 38000 lumens and 5000K cool white color temperature using universal voltage 120-277V. The fixture housing has a die-cast aluminum construction, and is also sealed with a polycarbonate lens. LED highbay fixtures are ideal lighting solutions for commercial applications like warehouses, gymnasiums, factories, convention centers and arenas.

H2 LED UFO High Bay Light Product decomposition

1.  Aluminum Alloy, Super heat conductivity, better heat dissipation

2.  Waterproof IP65,high thermal conductivity housing

3.  Premium Material, light weight, reduce transportation cost.

4.  Glass lens with transmittance up to 92%

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图1

H2 LED UFO High Bay Light Product Parameters

Part Number HS-HB150W-H2 HS-HB200W-H2 HS-HB250W-H2
Wattage 150W 200W 250W



Lumen Output 22800lm 30400lm 38000lm



LED Quantity 210pcs 280pcs 280pcs



Size(MM) Φ380*H190
LED Chip  Lumileds 2835
Luminous Efficacy 152LM/W
CCT 3000K-6500K
CRI ≥80
Beam Angle 120°
IP Rating IP65
Working Temperature -30℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, >0.92
Warranty 7 years
Lifespan >50,000hrs
Material Die-casting Aluminum housing+tempered glass cover

H2 LED UFO High Bay Light Intelligent Control

H2 LED UFO High Bay Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图2

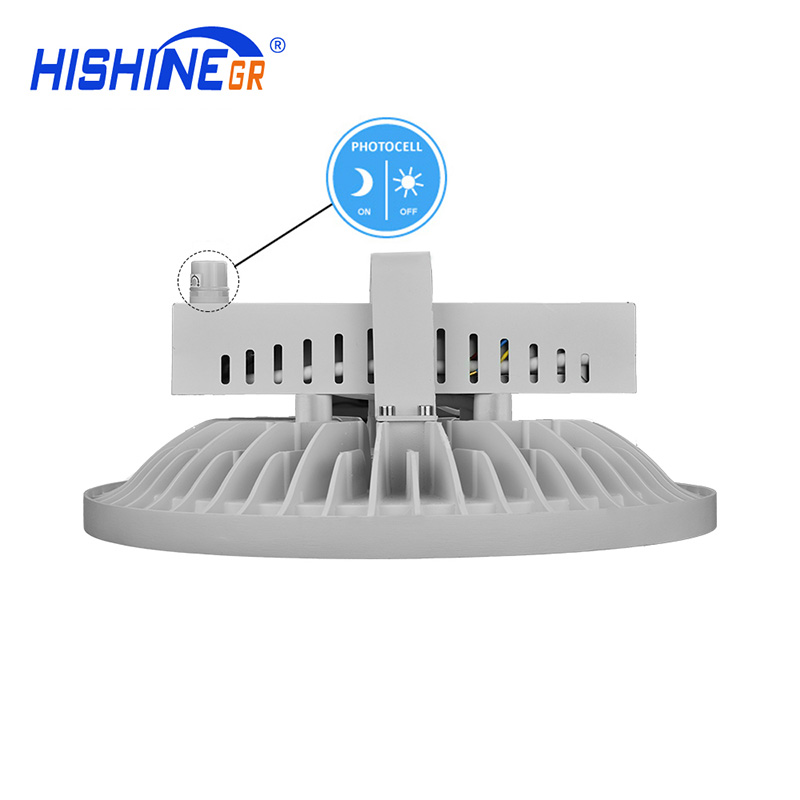

H2 LED UFO High Bay Light Multifunction

two cut-out on top of power supply box, one apply for motion sensor ,another apply for Pipe

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图3

H2 LED UFO High Bay Light IP Rating IP65

Silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图4

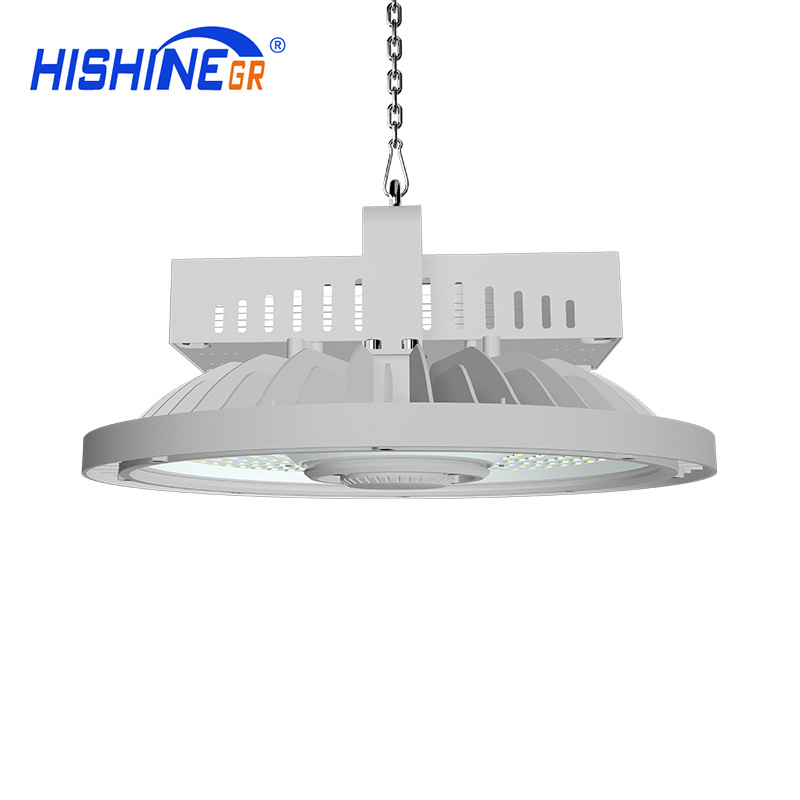

H2 LED UFO High Bay Light Multiple Mounting Options

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图5

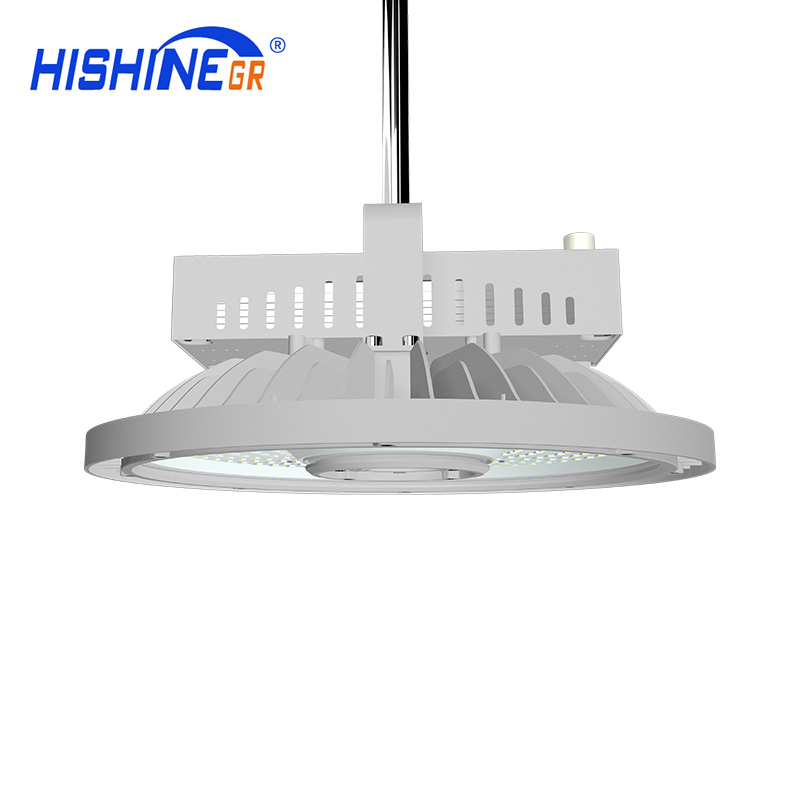

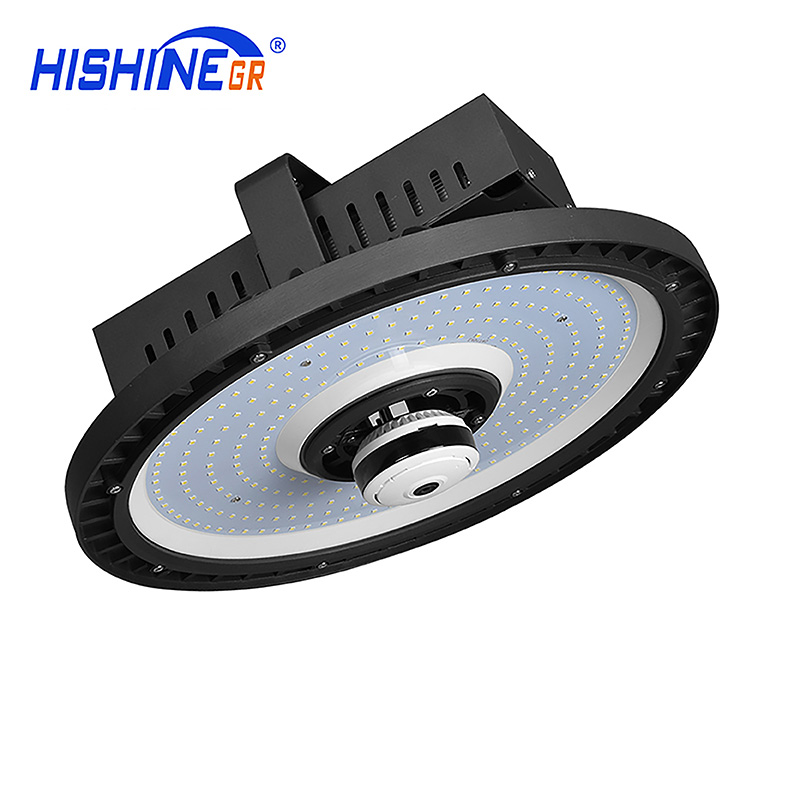

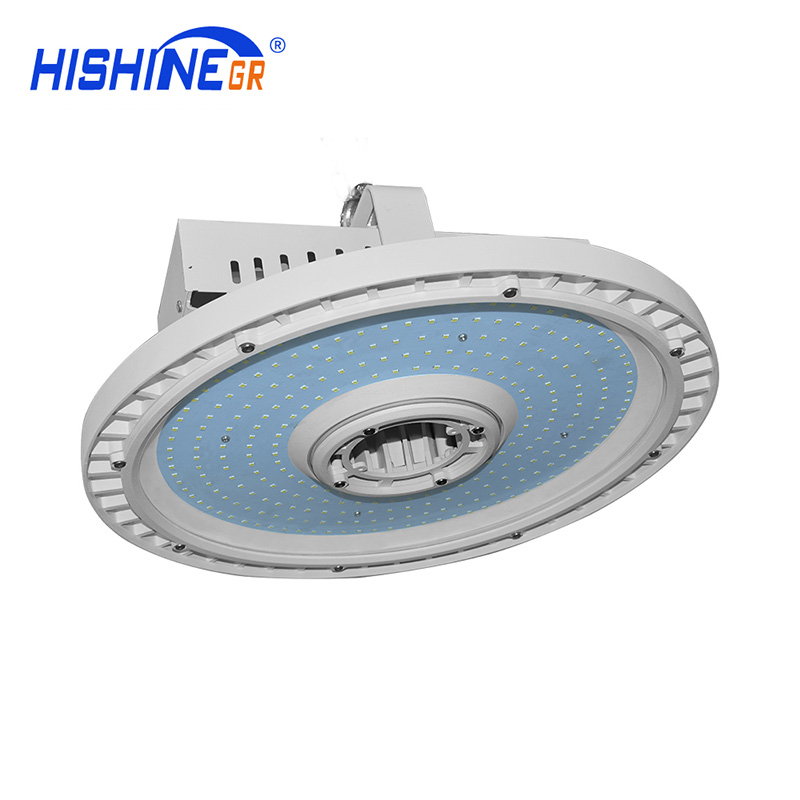

Actual Product Picture

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图6

H2 LED UFO High Bay Light Applications

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图7

150W-250W H2 LED UFO High Bay Light in Railway station lighting插图8
