190LM/W Led Shoebox Light 200W 240W 280W

Product Parameters:

  • Wattage: 200W 240W 280W
  • Luminous Efficacy: 190LM/W
  • Lumen Output: 38000lm-53200lm
  • Warranty: 7 years
  • Certification: UL, DLC, CE, CB, ROHS,SOSA,IK10

Product Details

190LM/W Led Shoebox Light 200W 240W 280W插图

• 190LM/W,  40% energy saving .

• Unique design is better for anti-bird and leaves, independent cooling of light source and power supply which will reduce light decay.

• High Lumen SMD5050 Led chip, the penetration rate is 30% stronger than normal chips.

• The fixture adopts independent split heat dissipation design, can effectively reduce the light decay of the leds.

• Light distribution: Type II, Type III, Type V.

• Varieties of installation fittings for different applications

Led Shoebox Light Product Specifications

190LM/W Led Shoebox Light 200W 240W 280W插图1

Led Shoebox Light Parameters

(3030 Chip Series)

Part Number

HS-PL200W-C

HS-PL240W-C

HS-PL280W-C

Wattage

200W

240W

280W

Luminous Efficacy

130LM/W

130LM/W

130LM/W

Lumen Output

26000lm

31200lm

36400lm

LED Quantity

272pcs

272pcs

272pcs

(5050 Chip Series)

Part Number

HS-PL200W-C

HS-PL240W-C

HS-PL280W-C

Wattage

200W

240W

280W

Luminous Efficacy

185LM/W

185LM/W

175LM/W

Lumen Output

37000lm

44400lm

49000lm

LED Quantity

136pcs

136pcs

136pcs

Size(MM)

L487*W340*H100

L487*W340*H100

L487*W340*H100

CCT

3000K-6500K

CRI

≥80

Beam Angle

TypeII,TypeIII,TypeV,

IP Rating

IP66

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens



Key Features Of Led Shoebox Light

190LM/W Led Shoebox Light 200W 240W 280W插图2

Led Shoebox Light Components

190LM/W Led Shoebox Light 200W 240W 280W插图3

Led Shoebox Light Smart

190LM/W Led Shoebox Light 200W 240W 280W插图4

Led Shoebox Light Light Distribution

190LM/W Led Shoebox Light 200W 240W 280W插图5

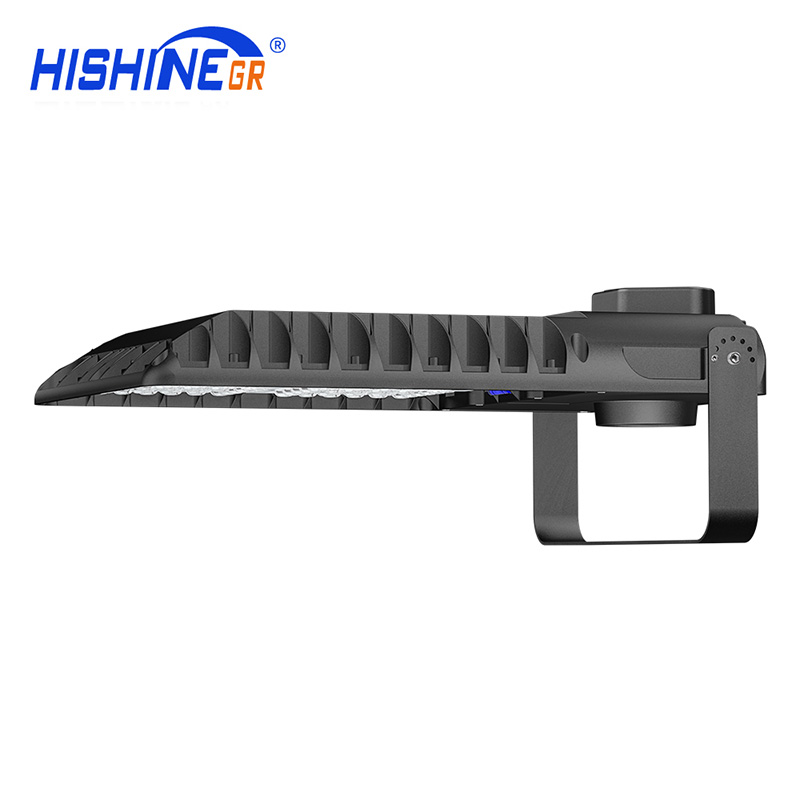

Led Shoebox Light Multiple Mounting

190LM/W Led Shoebox Light 200W 240W 280W插图6

Led Shoebox Light  Applications

Used in large parking lots and tennis courts, roads, Badminton, football, basketball, tower lights, etc. It can also be used in special lighting environments such as airports, commercial buildings, construction projects, farms, amusement parks, parking lots, ports, and industrial buildings.

190LM/W Led Shoebox Light 200W 240W 280W插图7

190LM/W Led Shoebox Light 200W 240W 280W插图8

190LM/W Led Shoebox Light 200W 240W 280W插图9

190LM/W Led Shoebox Light 200W 240W 280W插图10
