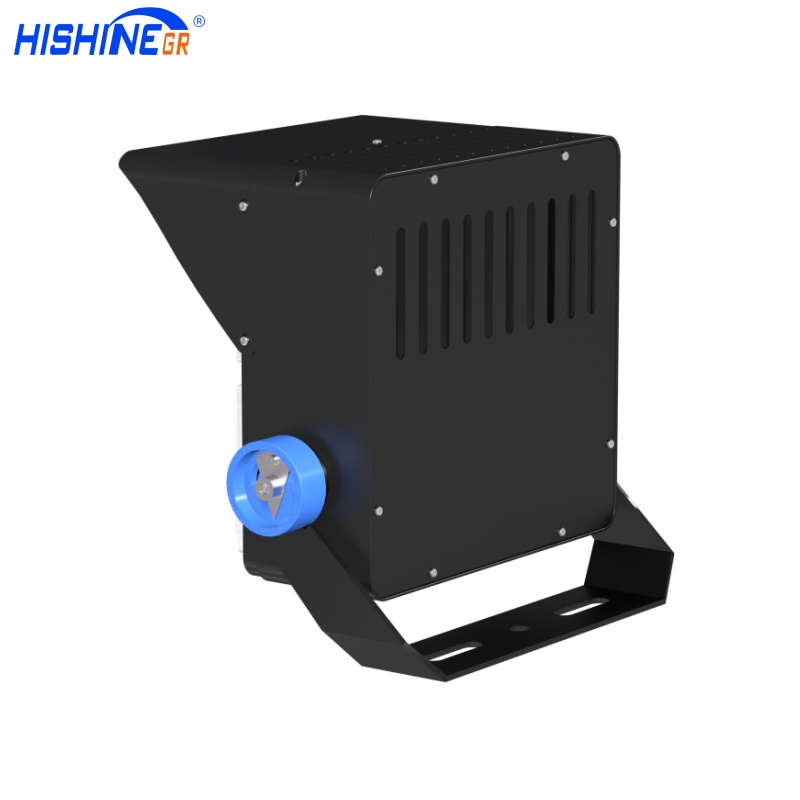

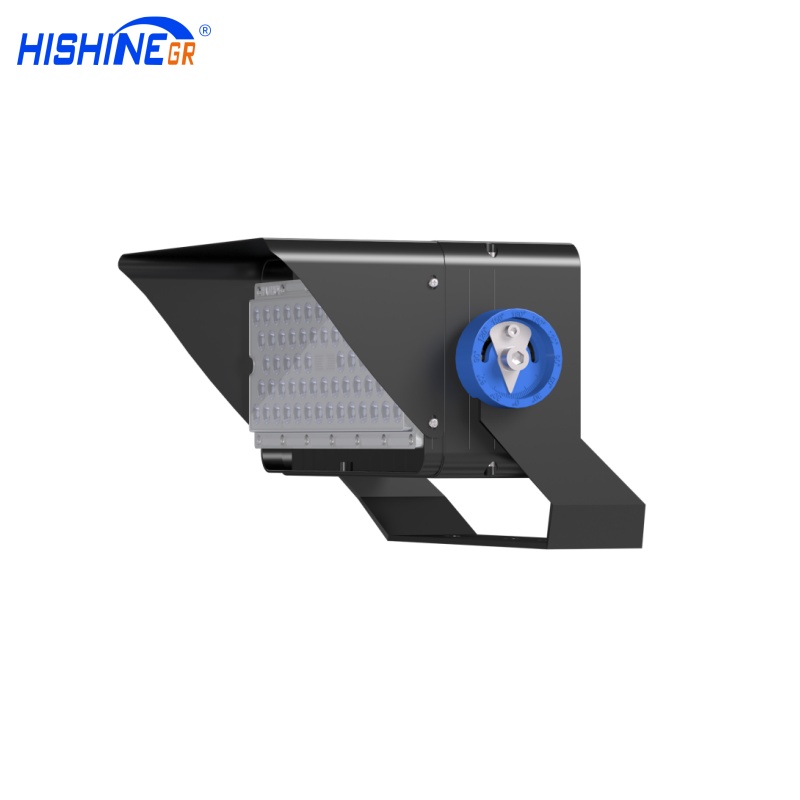

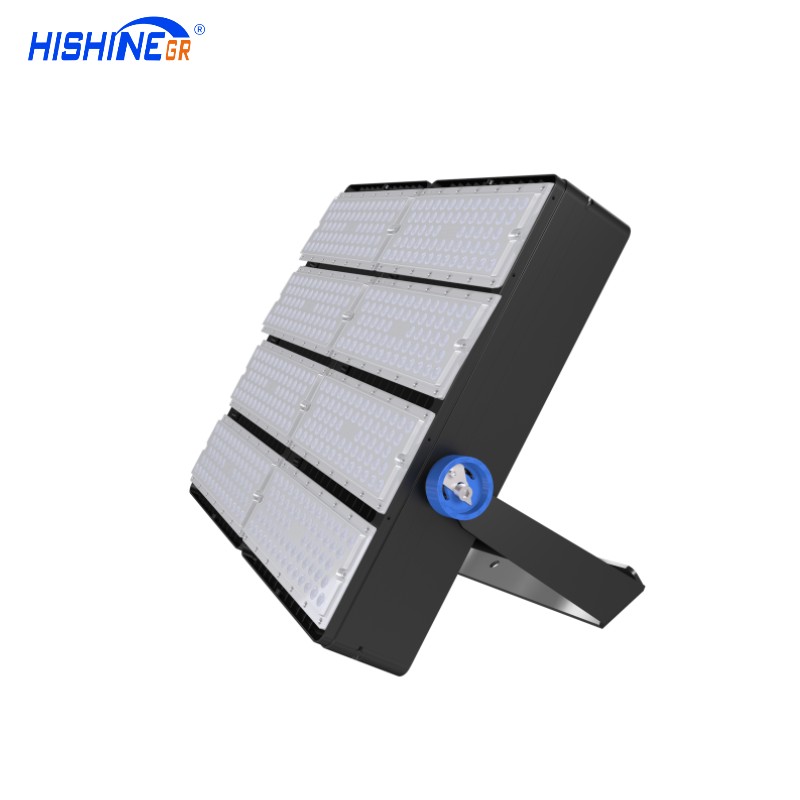

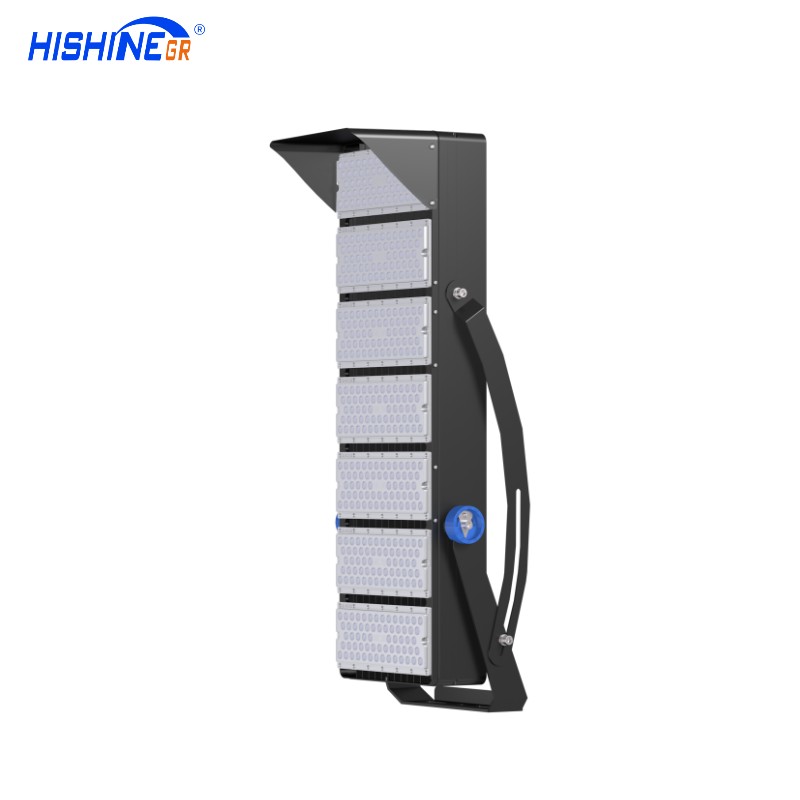

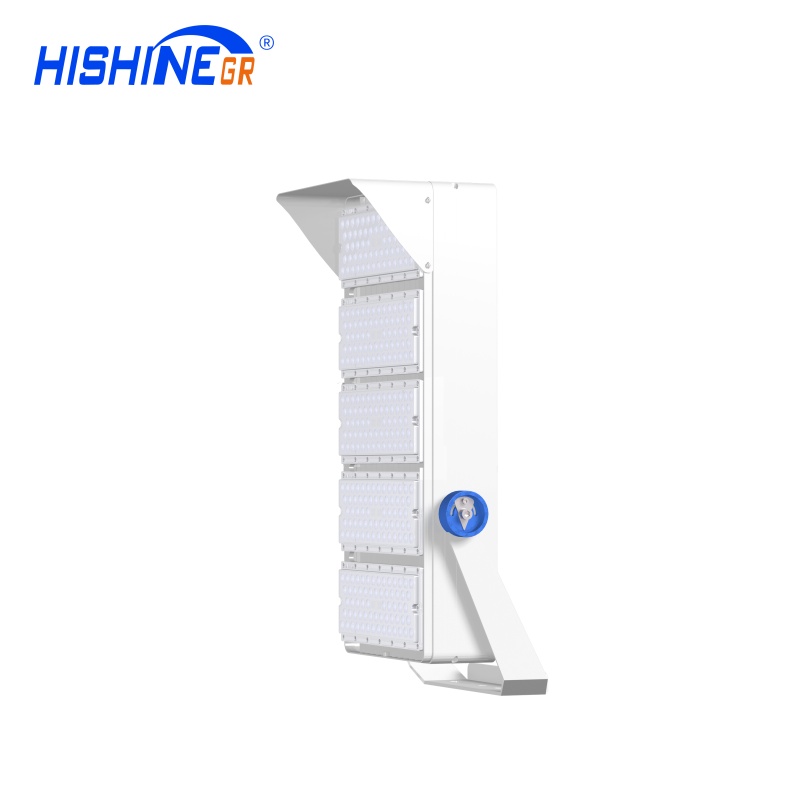

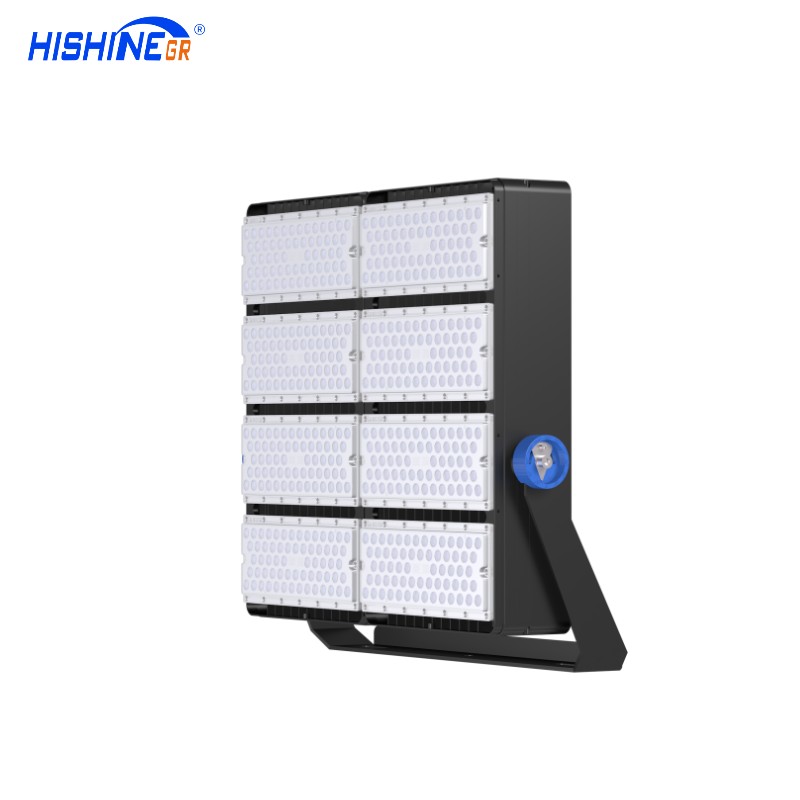

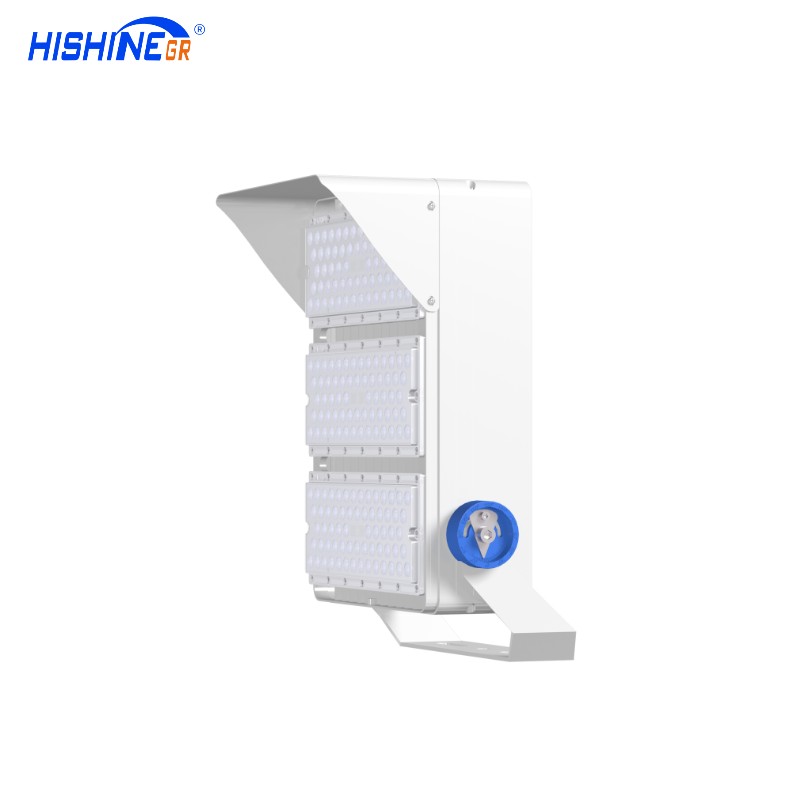

Hi-Flood Outdoor Sports Field Lamp

Product Parameters:

  • Wattage: 200W 400W 600W 800W 1000W 1200W 1600W 1800W
  • Luminous Efficacy: 150LM/W
  • Warranty: 5 years
  • Certification: UL,DLC,CB,CE,SAA,SASO,IP65

Product Details

Product Introduction


The Hi-flood fixture is a versatile, high-performance sports flood light designed for recreational and collegiate outdoor fields. It can also be used as a high-bay fixture for high-ceiling applications such as airplane hangers and large warehouses and distribution centers.
Hi-Flood Outdoor Sports Field Lamp插图

Hi-Flood Sports Floodlight Series Information


Part Number HS-HM200W-E HS-HM400W-E HS-HM600W-E HS-HM800W-E HS-HM1000W-E HS-HM1200W-E HS-HM1400W-E HS-HM1600W-E HS-HM1800W-E
Wattage 200W 400W 600W 800W 1000W 1200W 1400W 1600W 1800W
Lumen Output 29600lm 60000lm 90000lm 120000lm 150000lm 180000lm 210000lm 240000lm 270000lm
LED Quantity 64pcs 128pcs 192pcs 256pcs 320pcs 384pcs 448pcs 512pcs 596pcs
LED Chip 5050 chip
Luminous Efficacy 150LPW
CCT 3000K-6500K
CRI ≥80
Beam Angle 10°(only for 3737chip)/20°/40°/60°
IP Rating IP65
Working Temperature -30℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, >0.92
Warranty 5 years
Lifespan >50,000hrs
Material Die-casting Aluminum housing+PC lens

Product Details


Hi-Flood Outdoor Sports Field Lamp插图1 Hi-Flood Outdoor Sports Field Lamp插图2

Beam Angles: 10°/20°/40°/60°

SMD 5050 chips, Make Brighter
Hi-Flood Outdoor Sports Field Lamp插图3 Hi-Flood Outdoor Sports Field Lamp插图4
Each scale is 30° Unique air convection radiator design

Product Features


1.Ruggedly designed with die-cast aluminum housing and clear polycarbonate lens, Mercury and UV free. RoHs-compliant components.
2.High luminous efficacy up to 150LM/W.
3.Chimney heat dissipation design improves cooling efficiency to facilitate maximum airflow.
4.Built-in Aimer makes installation more efficient and accurate. There is no need to purchase an additional laser aimer and it can be easily installed synchronously according to the DIALux file design.
5.Beam angle 10°(only for 3737chip)/20°/40°/60°, the narrow beam has strong penetrating power and can be used in railway tracks, towers, and other occasions that require strong light exposure.
6.The fixture is lightweight compared to most sports floods and has angle increments calibrated on the housing, standard yoke mount, and slip-fit mount for precise aiming.

Product Dimensions


sports floodlight


Installation Methods


installation methods

Application Of LED Soccer Sports Stadium Lights


Training Basketball Players-1_副本.jpg Tennis court LED lighting Baseball Stadium LED Lighting Port terminal LED lighting
Basketball Court Light Tennis Court Light Baseball Court Light Hockey Stadium Lihgt
Racecourse LED lighting Football field LED lighting Golf Course LED lighting Badminton Court LED Lighting
Racecourse Light Football Field Light Golf Course Light Badminton Court Light
Olympic Stadium Lighting: Hi-Flood high mast light provides bright and even illumination for players and spectators. With DMX/DALI control high mast light can make complex light shows and scene modes.
Outdoor Sports Arenas Lighting: Up to 150lm/W provides powerful illumination that allows games to be played well into the night. Such as basketball fields, soccer fields, football stadiums, tennis courts, rugby fields, beach volleyball fields, baseball fields, hockey fields, racetracks, velodromes, golf courses, theme parks, and swimming pools…
Indoor Sports Arenas Lighting: Hi-Flood soccer sports stadium lights’ design allows the lamps to be evenly distributed across the playing surface.
Port Terminals Lighting: Super high mast light provides bright and efficient illumination that enhances safety and visibility.
Airport and Aprons Lighting: Hi-Flood high mast light’s powerful illumination and Typhoon 17 resistance allow workers to see, even in low-light conditions, reducing the risk of accidents and increasing productivity.
Squares and School Playgrounds Lighting: Hi-Flood soccer sports stadium lights powerful illumination allows children to play safely, even in low-light conditions, reducing the risk of accidents and increasing playtime.
Circular Roads and Bridges Lighting: Hi-Flood high mast light’s high brightness lighting chip and IP67 waterproof, make road driving safe and bright.
Prison Courtyards Lighting: Powerful illumination allows drivers and security personnel to see, even in low-light conditions, reducing the risk of accidents and enhancing security.

Related Products

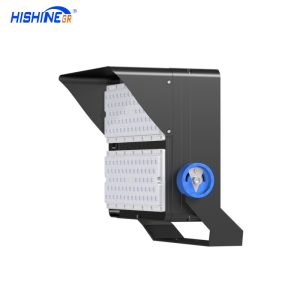

logo 400W
