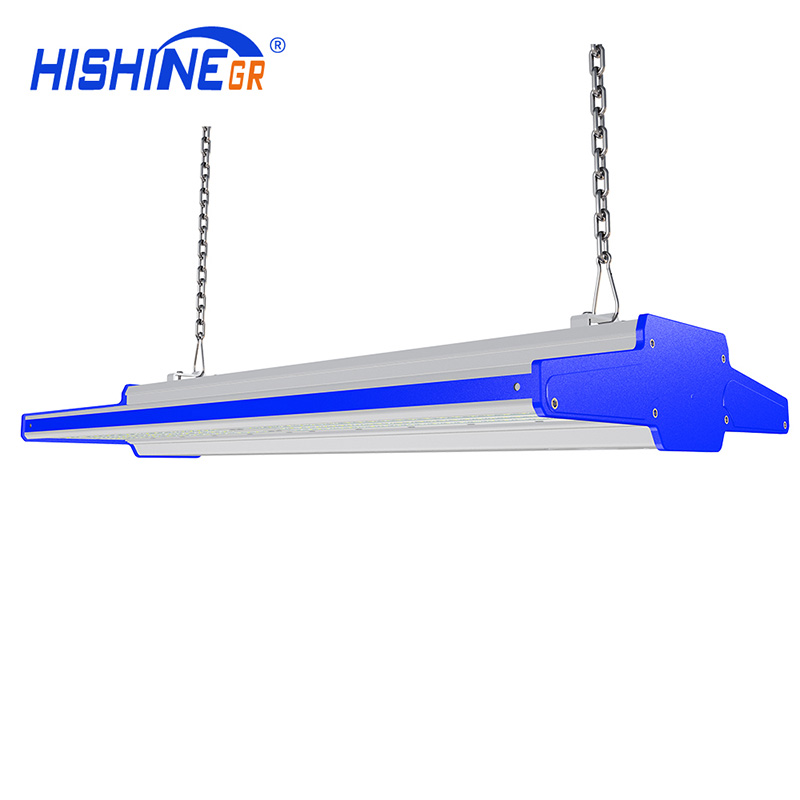

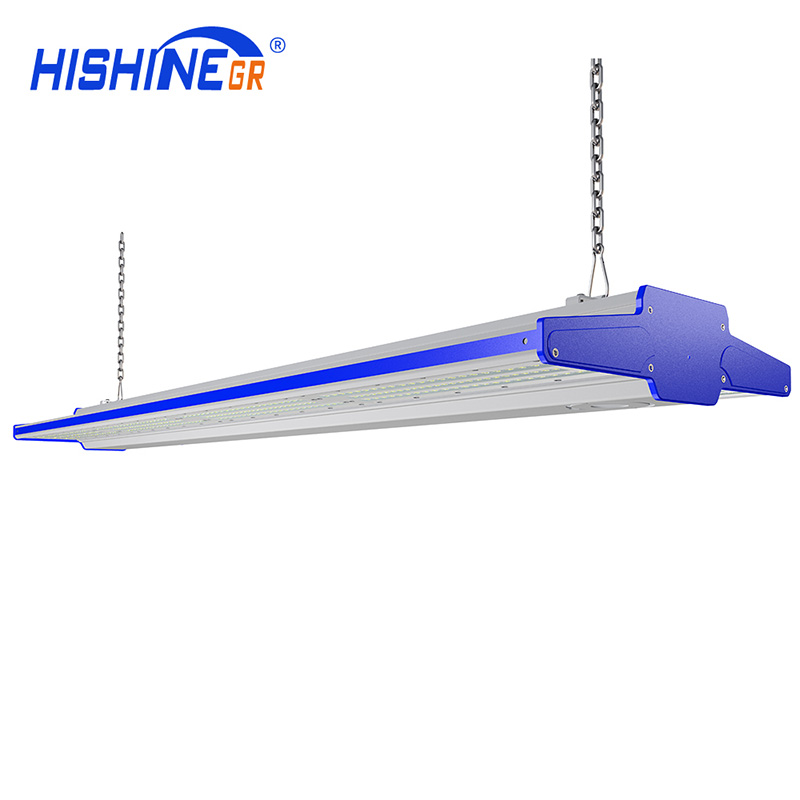

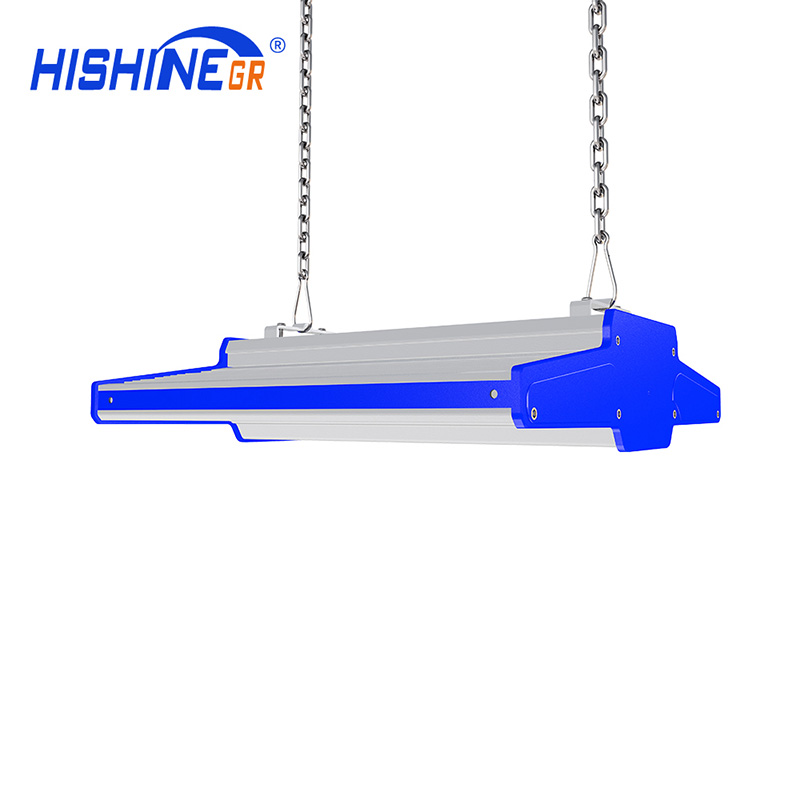

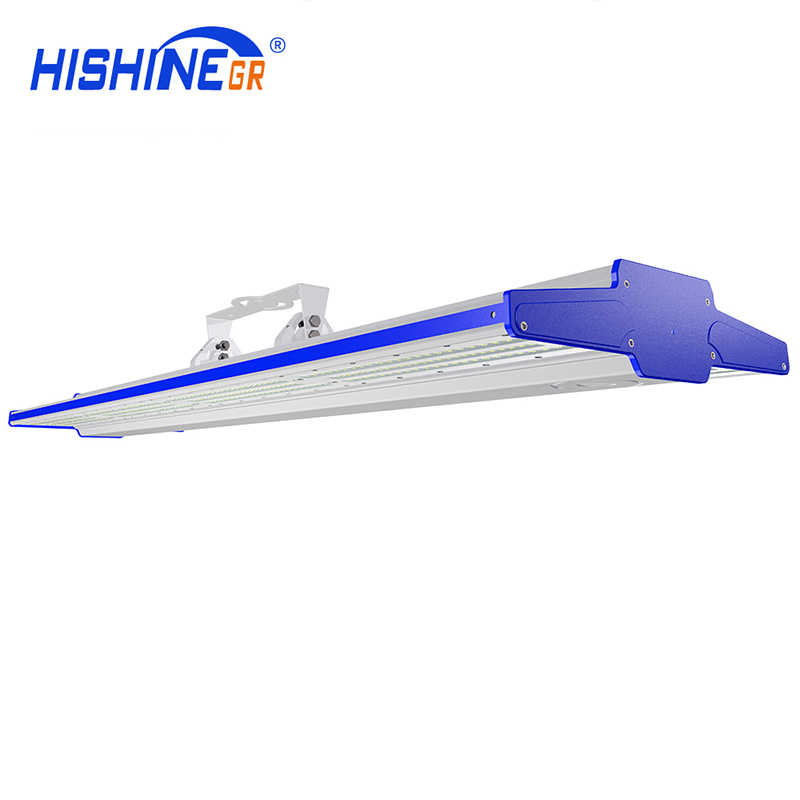

HS-HB-K2 linear LED luminairies deliver a high lumen output to replace legacy HID and 2-, 4- or 6-lamp T5HO fluorescent fixtures in both low bay and high bay applications. The HS-HB-K2 family of linear LED high bay fixtures are available in eight different wattages including 100W, 150W, 200W, 250W, 300W, 360W, 400W and 500W. They’re designed to replace 1300W HID equivalents while achieving up to 75% energy savings. Rugged construction and sophisticated LED technology add unparalleled energy efficiency and reliability for years of maintenance-free operation.

The HS-HB-K2 linear high bay delivers industry-leading performance with an extremely attractive payback advantage. The full body assembly features a value-optimized chassis design and is made of extruded aluminum that provides durable protection and optimal heat dissipation for LEDs, optics and electrical components. The high flux density SMD LEDs produce 152 lm/W system efficacy (lensed). Combined with perfectly matched driving circuit with full featured protections as well as superior thermal management, HS-HB-K2 LED modules offer an extraordinary lumen maintenance greater than 90 percent at 50,000 hours and projected life over 200,000 hours.

K2 LED Linear High Bay Light Product Specifications

K2 LED Linear High Bay Light Specification

K2 LED Linear High Bay Light Product Parameters

Key Features Of K2 LED Linear High Bay Light

•  Separate heat sink for driver and Led chip

•  Three-dimensional diamond light guide technology

•  Beam angle 60° /90° /120° with transparent / frosted PC lens available

•  Endless Connection

• Colorful housing can be customized

K2 LED Linear High Bay Light Intelligent Control

K2 LED Linear High Bay Light Intelligent Control： 0-10V Dimming,Timer Control, Zigbee Control, Occupancy sensor,Daylight sensor,Emergency power supply,DALI Control

K2 LED Linear High Bay Light Lens And Beam Angle

Milky Lens And Transparent Lens

View angle 60°/90°/120° available

Milky Lens Light did not glare but warm,always in pression

Transparent Lens Transparent Lens transmittance over 92%

K2 LED Linear High Bay Light IP Rating IP65

Silicon rubber ring sealing process, IP grade reach IP65,

completely prevent dust invasion and heavy rain.

K2 LED Linear High Bay Light Multiple Mounting Options

K2 LED Linear High Bay Light Applications

Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.
