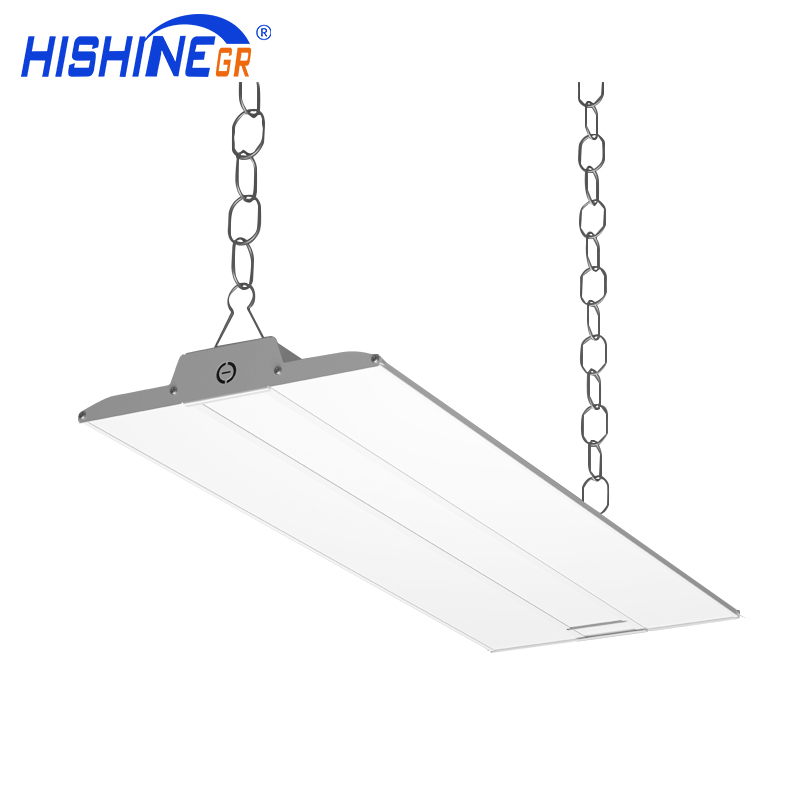

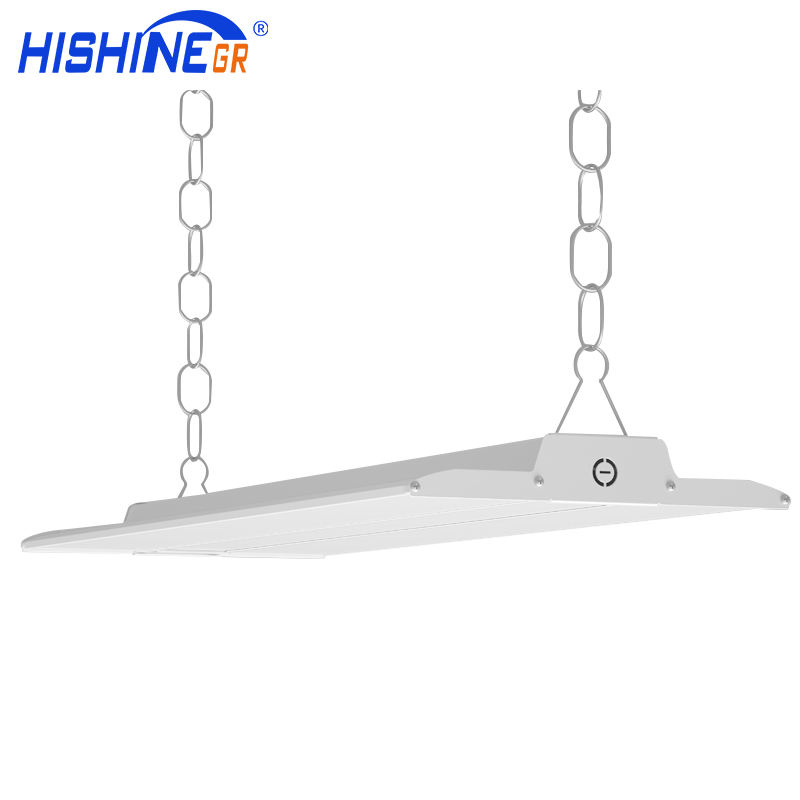

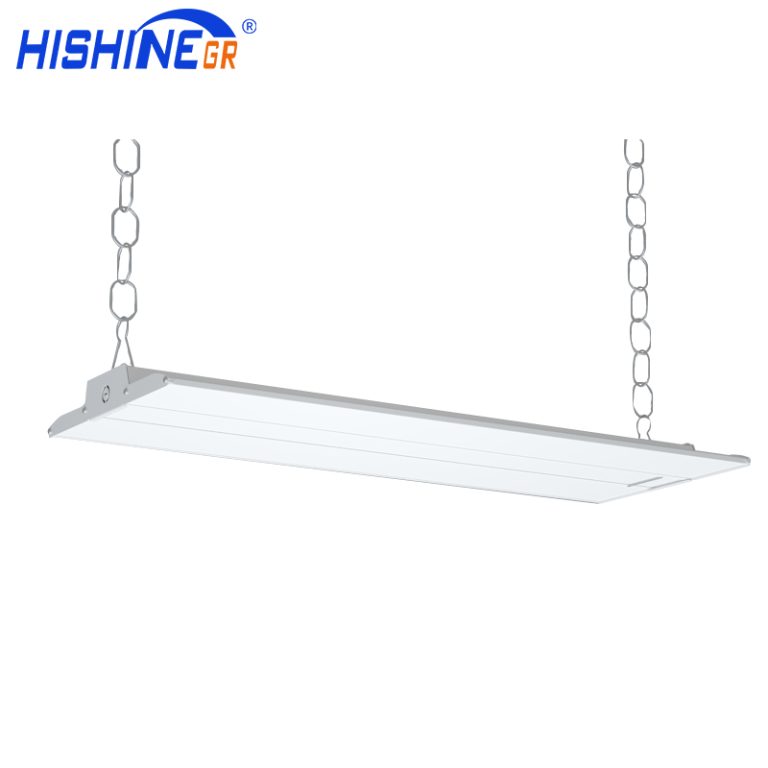

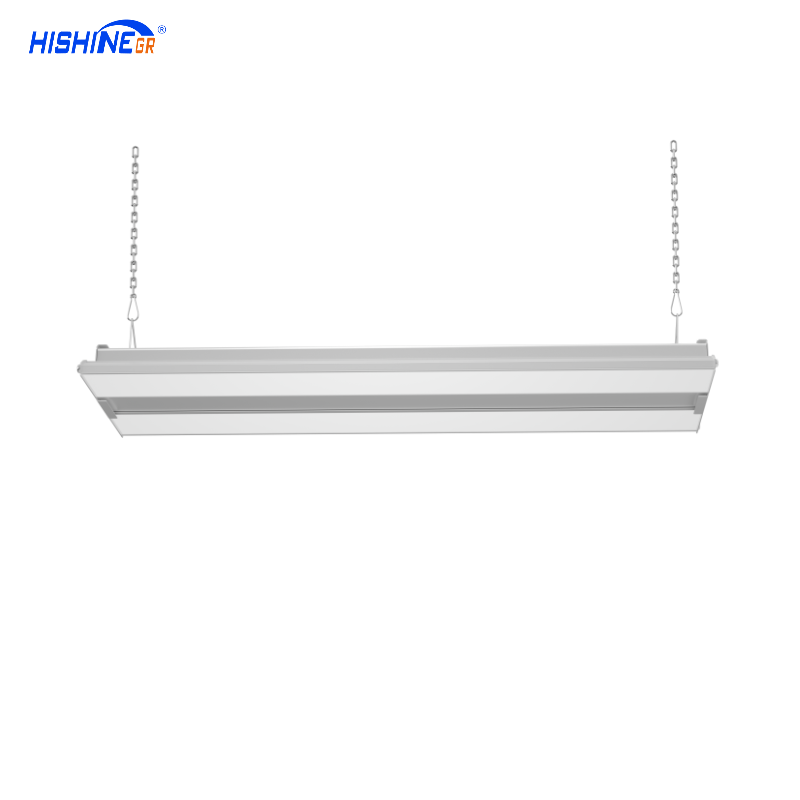

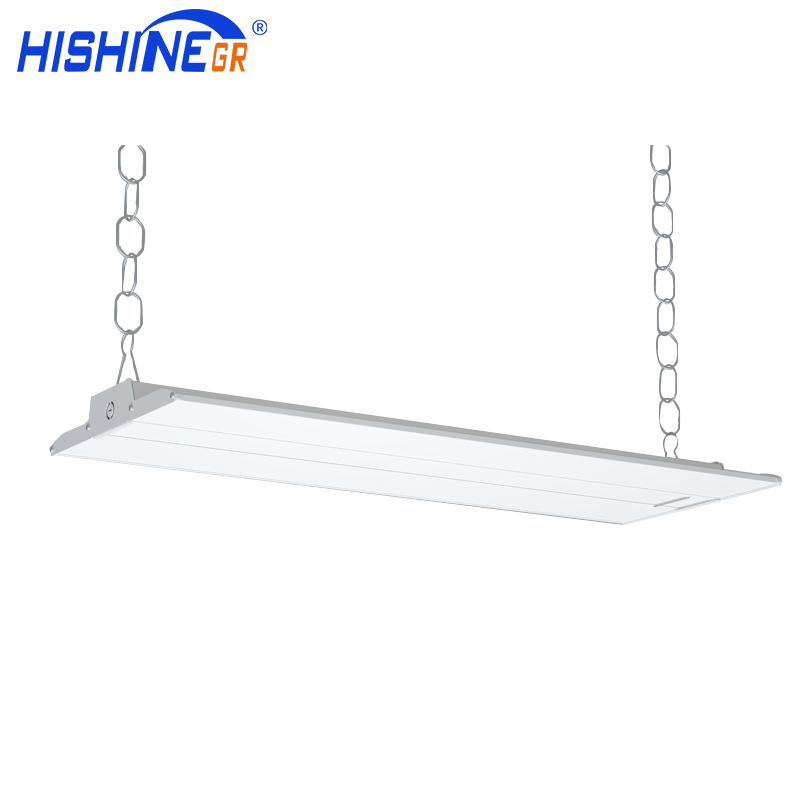

K9 High Lumen LED High Bay Light

Product Parameters:

  • Wattage: 40W 80W 100W 150W 200W 250W 300W
  • Luminous Efficacy: 200LM/W
  • Lumen Output: 8000lm-60000lm
  • Warranty: 3 years

Product Details

K9 High Lumen LED High Bay Light插图

K9 No Glare Linear High Bay Light Features


1.Housing material: die-casting aluminum
2.High luminous output 200LM/W, energy saving 50%
3.Translucent lens standard to minimize glare
4.L70 lumen maintenance of 100,000 hours
5.Intelligent control: infrared remote control, Zigbee, Bluetooth Mesh, high-altitude microwave sensor, infrared light sensor, Zigbee version supports heat map, supports light decay compensation
6.Multiple Mounting Options: Suspended mounted

K9 No Glare Linear High Bay Light Parameters

Wattage Lumen Output LED Chip Efficacy LED Quantity Beam Angle CCT&CRI Voltage
40W 8000lm Lumileds 2835 200LM/W 150pcs 120º 3000K-6500K;>80 AC100-277V;347V/480V;50/60HZ
80W 16000lm 150pcs
100W 20000lm 300pcs
150W 30000lm 300pcs
200W 40000lm 450pcs
250W 50000lm 450pcs
300W 60000lm 600pcs

Technical Specifications

Part Number Dimensions(mm) N.G(KG) G.W(KG) Package Size(mm) Warranty Lifespan Each Package(unit)
HS-HB40W-K9 300L*342W*55H 1.9 4.7 345L*387W*228H 3 Years >50000hrs 2pcs
HS-HB80W-K9
HS-HB100W-K9 600L*342W*55H 3 7.7 645L*387W*228H
HS-HB150W-K9
HS-HB200W-K9 900L*342W*55H 4.3 11.5 945L*387W*228H
HS-HB250W-K9
HS-HB300W-K9 1200L*342W*55H 5.5 15.5 1245L*387W*228H

Intelligent Controller Of K9 No Glare Linear High Bay Light


K9 High Lumen LED High Bay Light插图1

K9 No Glare Linear High Bay Light Dimension


K9 High Lumen LED High Bay Light插图2

Actual Product


K9 High Lumen LED High Bay Light插图3

K9 High Lumen LED High Bay Light插图4

Aging Test

K9 High Lumen LED High Bay Light插图5

Outer Packing

K9 High Lumen LED High Bay Light插图6

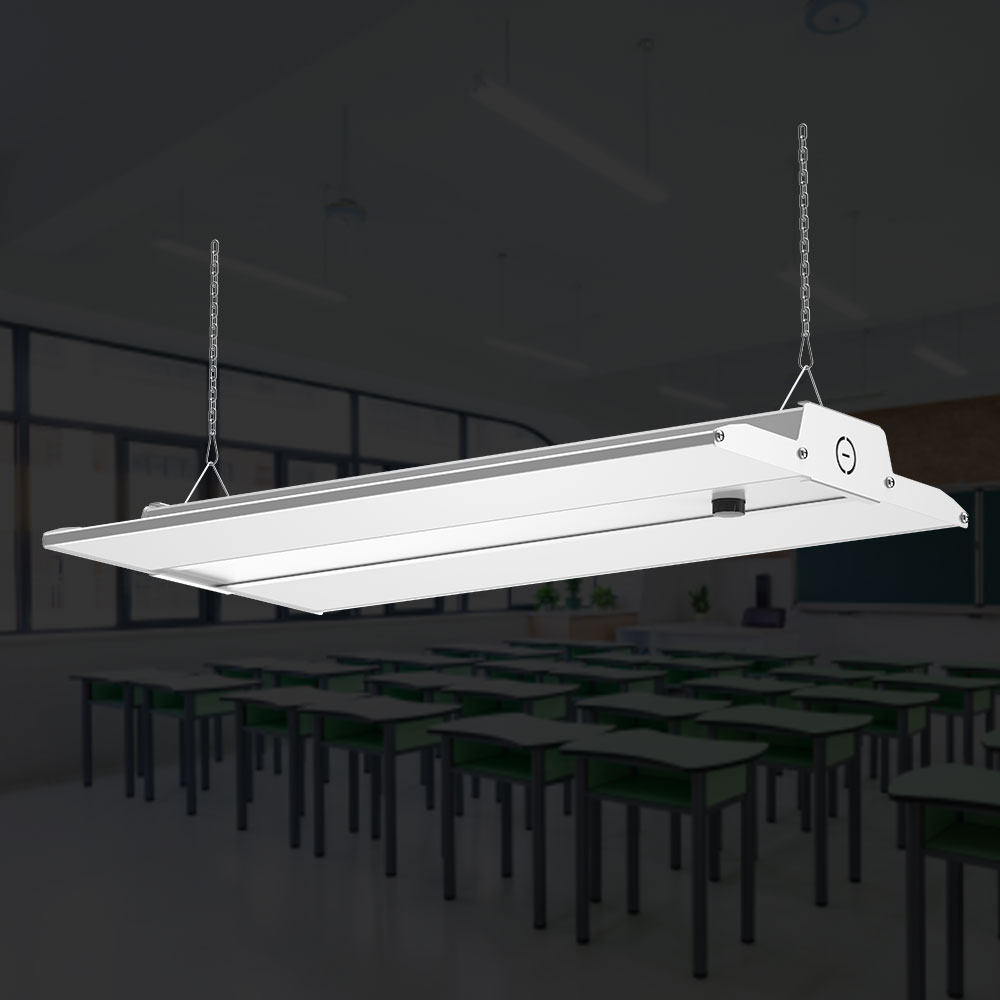

K9 No Glare Linear High Bay Light Application


K9 High Lumen LED High Bay Light插图7

⊿ K9 LED linear high bay light is used in warehouses, factory workshops, stations,  exhibition halls, large shopping malls, supermarkets, or other high hall lighting fields.

⊿ Warehouse:  High bay light K9 with a wide lighting range and uniform light, making the goods visible and convenient for workers to store and pick up goods.

⊿ Workshop: Provide 200LM/W high-brightness lighting so that workers can see the work area, improving work efficiency and safety.

⊿ Indoor Sporting Hall:  High bay lights can be installed in stadiums to provide strong lighting so that athletes and spectators can see the game, and improve the experience of the game and the effect of watching the game.

⊿ Supermarket: Provide high luminous efficacy that creates a bright environment, improving the shopping experience and sales.

⊿ Prison Courtyards: Powerful illumination allows drivers and security personnel to see, even in low-light conditions, reducing the risk of accidents and enhancing security.
